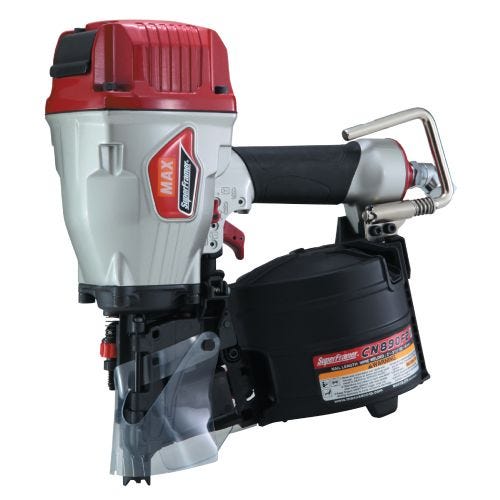

Max CN890F2 Coil Nailer

Features

  • Anti-double fire trigger prevents multiple nails from being fired in one shot. To move between bump fire and single fire mode no adjustment to the tool is necessary.
  •  A unique tangle-free swivel fitting allows users to conduct work in any angle freely, without having to worry about potential trips from tangled air hoses.
  • Designed with pointy teeth on the contact arm allows users to get a firm grip when toe-nailing, and also avoiding any rapid jerks or slipping during operation.
  • At 13.2" the CN890F2 is 30% shorter than conventional tools. This design feature allows the user to easily fit the tool in between studs.

Specifications

CN890F2
BrandMax
Weight7.80 (lbs)
Product TypeCoil Nailer
Product TypeNailer
Max Diameter.131"
Min Diameter.099"
Max Length3-1/2"
Min Length2"
Job TypeFraming
IndustryConstruction
SeriesCN
Magazine Capacity200 to 300 nails

Applications

Construction

Compatible Fasteners

  1. Model
    Length
    Diameter
    Shank
    Finish
  2. CN31/83T-2.5M
    3-1/4"
    .120"
    Smooth
    Brite (Standard)
  3. CN31/75RG-4.5M
    3"
    .120"
    Ring
    Electro Galvanized
  4. CN31/75S-4.5M
    3"
    .120"
    Screw
    Brite (Standard)
  5. CN31/83-4.5M
    3-1/4"
    .120"
    Smooth
    Brite (Standard)
  6. CN31/83S-4.5M
    3-1/4"
    .120"
    Screw
    Brite (Standard)
  7. CN28/60T-3M
    2-3/8"
    .113"
    Smooth
    Brite (Standard)
  8. CN28/60HDGT-3M
    2-3/8"
    .113"
    Smooth
    Hot Dipped Galvanized
  9. CN25/50-9M
    2"
    .099"
    Smooth
    Brite (Standard)
  10. CN25/50RHDG-9M
    2"
    .099"
    Ring
    Hot Dipped Galvanized
  11. CN28/70S-4.5M
    2-3/4"
    .113"
    Screw
    Brite (Standard)
  12. CN25/64S-7.2M
    2-1/2"
    .099"
    Screw
    Brite (Standard)
  13. CN33/89S-3.2M
    3-1/2"
    .131"
    Screw
    Brite (Standard)
  14. CN25/57S-9M
    2-1/4"
    .099"
    Screw
    Brite (Standard)
  15. CN31/75R-4.5M
    3"
    .120"
    Ring
    Brite (Standard)
  16. CN33/64R-4.05M
    2-1/2"
    .131"
    Ring
    Brite (Standard)
  17. CN28/60-6M
    2-3/8"
    .113"
    Smooth
    Brite (Standard)
  18. CN28/60RT-3M
    2-3/8"
    .113"
    Ring
    Brite (Standard)
  19. CN28/60RXT-3M
    2-3/8"
    .113"
    Ring
    XT™ Galvanized
  20. CN33/75-4.5M
    3"
    .131"
    Smooth
    Brite (Standard)
  21. CN31/83XT-2.5M
    3-1/4"
    .120"
    Smooth
    XT™ Galvanized
